Palletization 50kg SUNOKO, Kovačica

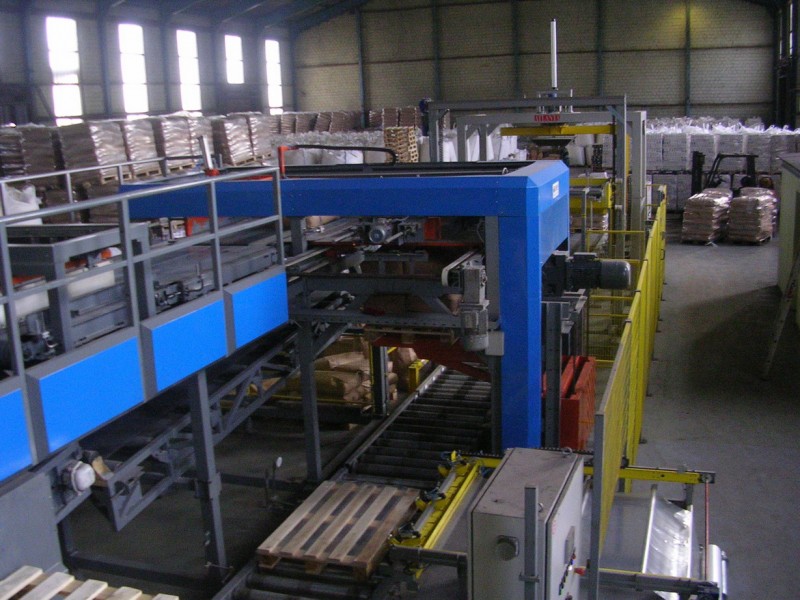

Suggar palletization line (50 kg bags, 1000 bags per hour), SUNOKO, Kovačica, Serbia

Each production line is specific and requires adjustment in order to integrate the palletizer. Our team is capable of adjusting all the elements into the optimal unit according to your requirements and restrictions.

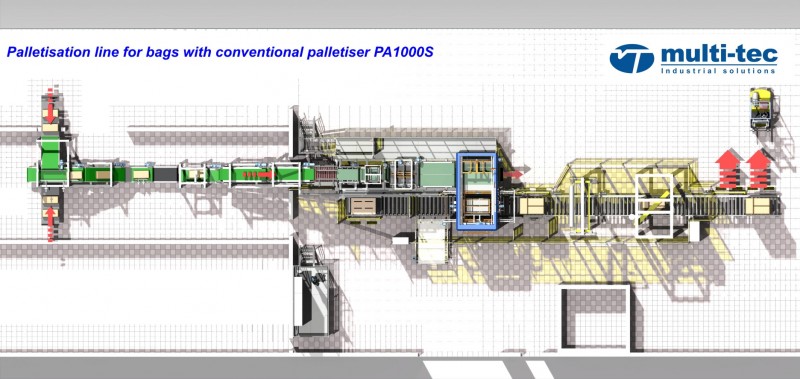

This palletizing line is the transportation system with the following specifics:

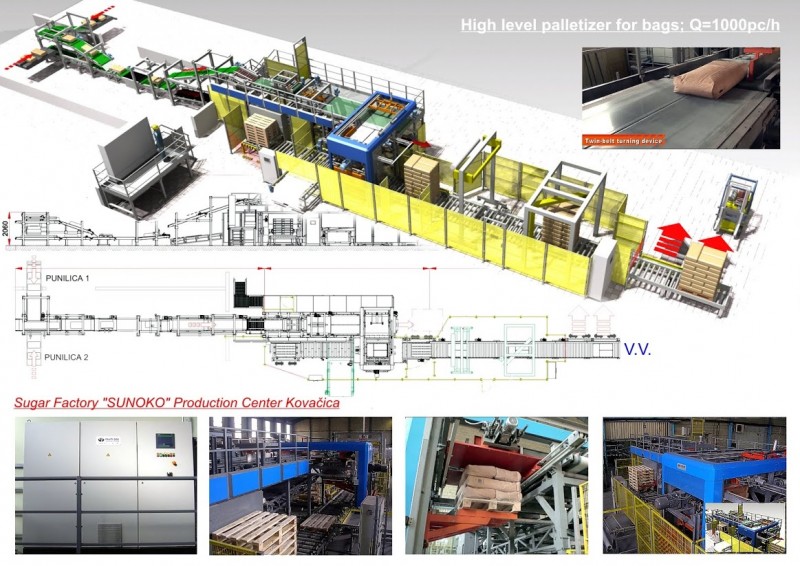

The line is designed for palletizing sugar bags of 50kg to EUR pallets 800x1200, weight 1000kg, capacity of 1000 bags/h. On the palette agrees total of 20 sacks. The first 6 layers consist of 3 opposite oriented bags and 7th layer consists of two bags.

The palletizing line for sugar is a continuation of filling lines 50kg packs of sugar. Sugar is filled in paper bags that are after charging ready for palletizing.

Bags are after charging direct to your belt conveyor on which can be changed slope (manually) and redirect the flow of movement bags on line for automatic palletizing line or for manual palletizing.

Formed pallet have the protective film on the bottom and on top of pallets which are placed with independent devices. At the end of the pallet wraps a protective film.

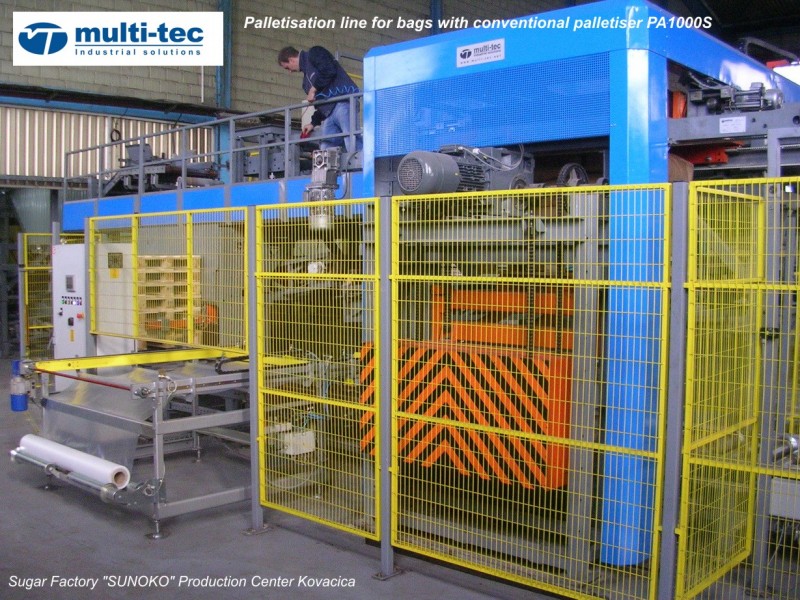

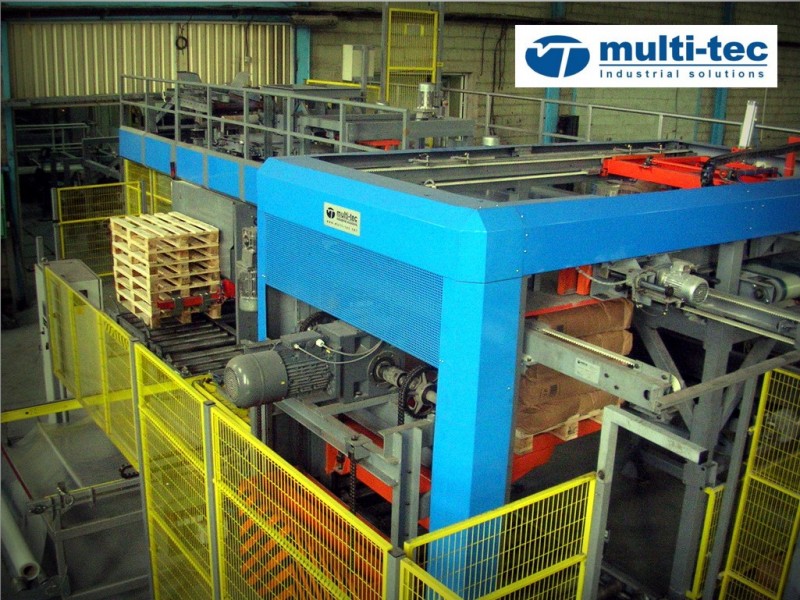

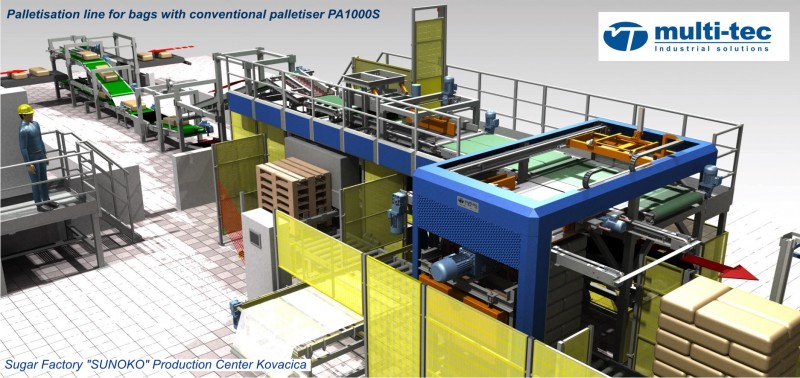

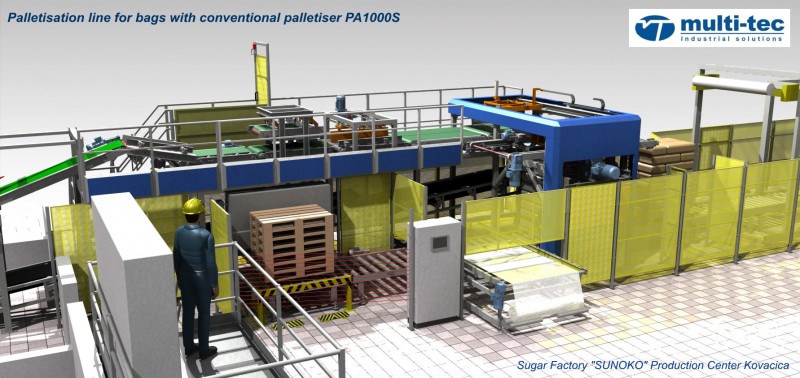

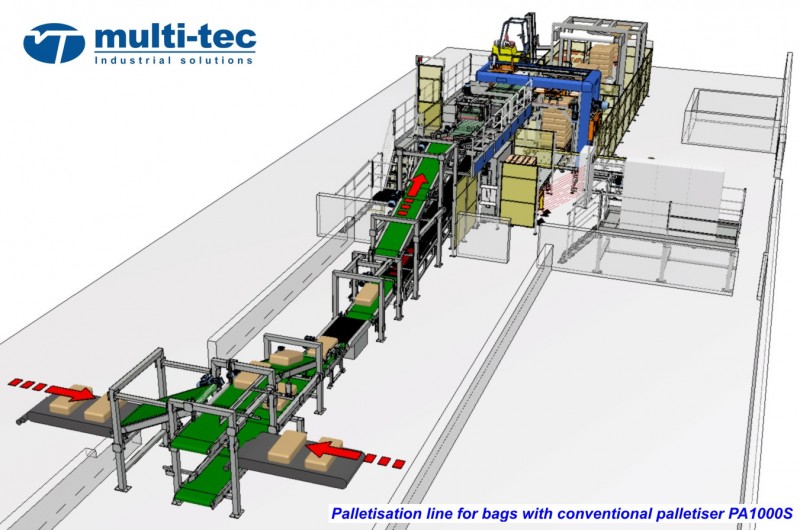

In the palletising line is integrated conventional palletizer PA1000S which is fully developed in our company.

Video:


Gallery:
Linija 2
