Industrial scales i.e. dosing systems work on the principle of weight measuring including rough fine dosing.
A system made up of multiple scales which are connected by a common control unit and easy handling software is the most commonly delivered one.

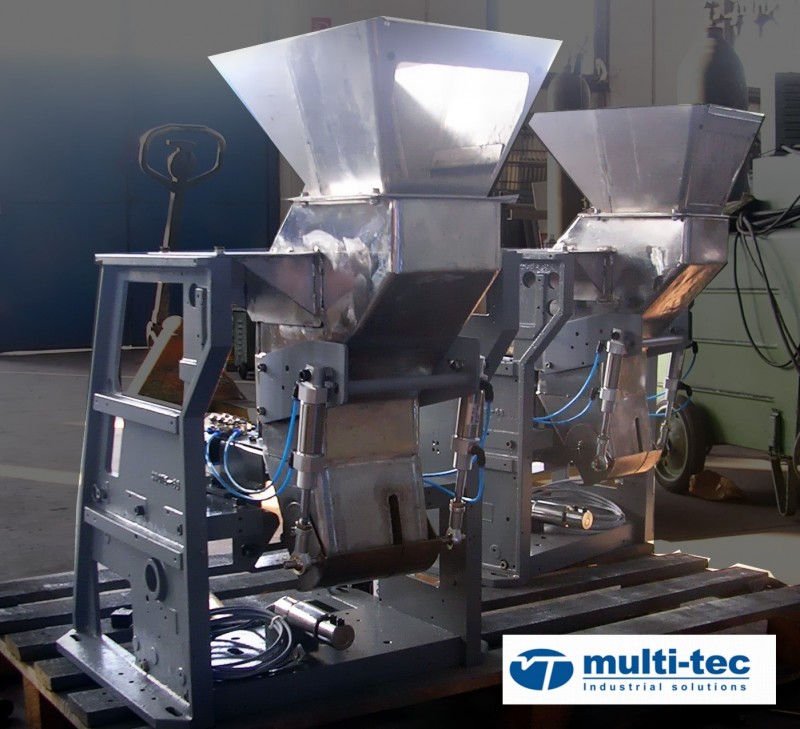

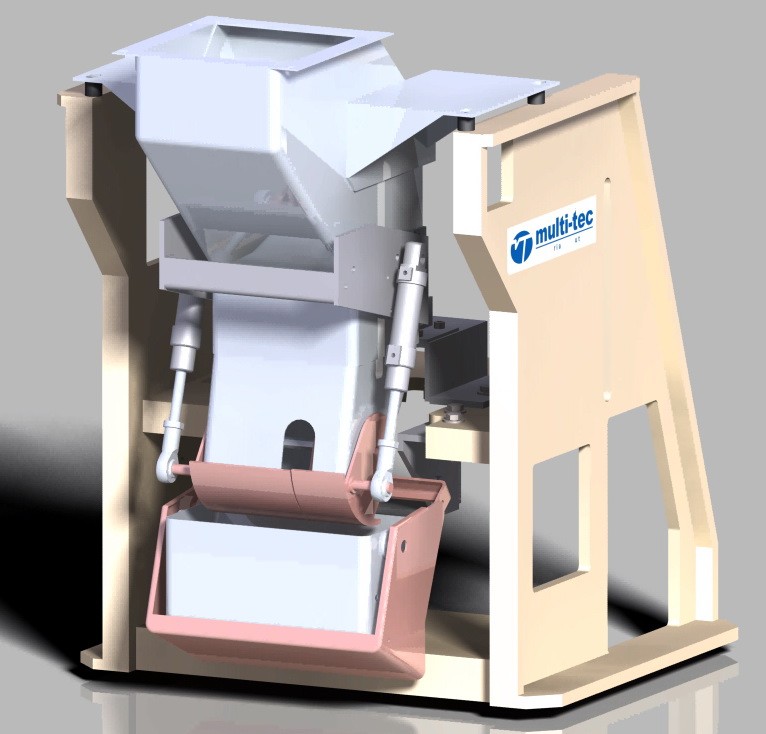

A load cell exists in the core of each scale and the execution elements are pneumatic cylinders which deflect the shutters and thusly realize the process of pouring sugar out of the chambers.

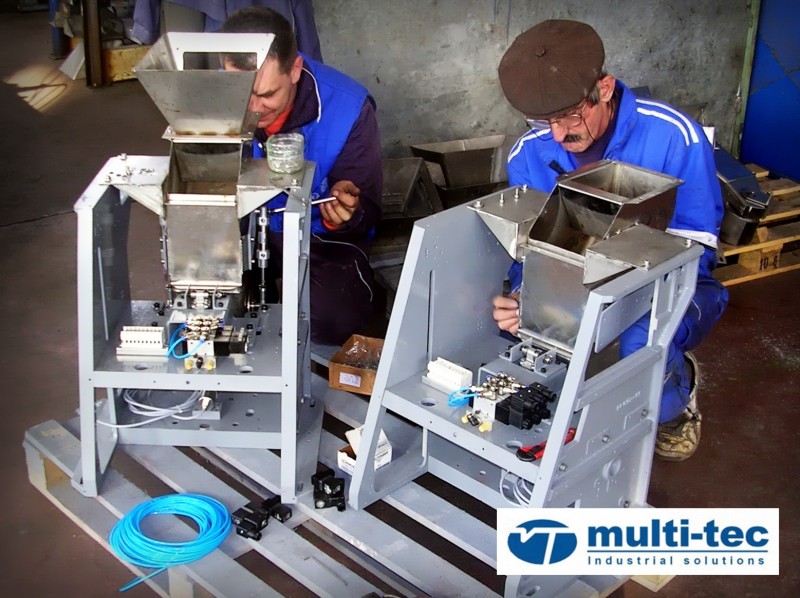

A robust and reliable assembly ensures great working longevity.
Characteristics of "Multi-tec HBM01D" industrial sugar scale:
• Capacity: up to 120 weighings per minute
• Weighing and dosing weights: 1-2kg±3g
• Required working pressure: 6 bars

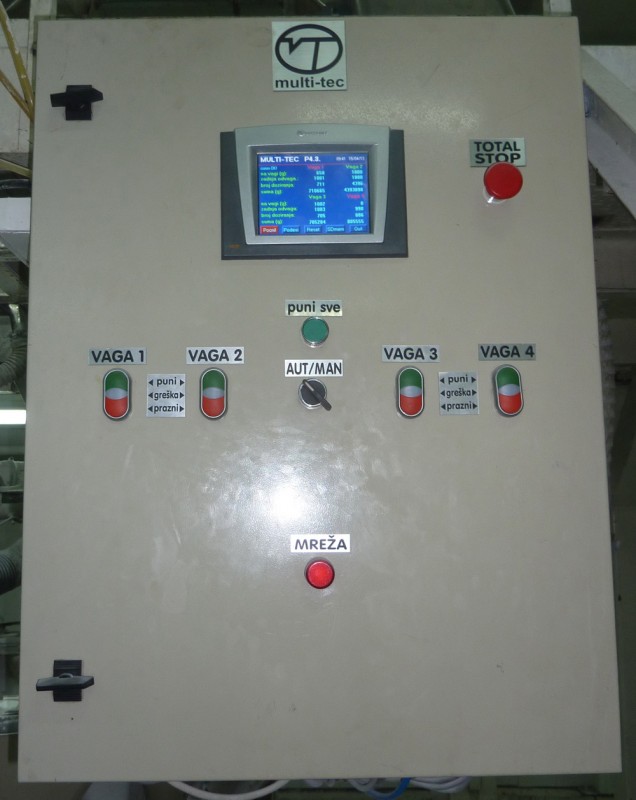

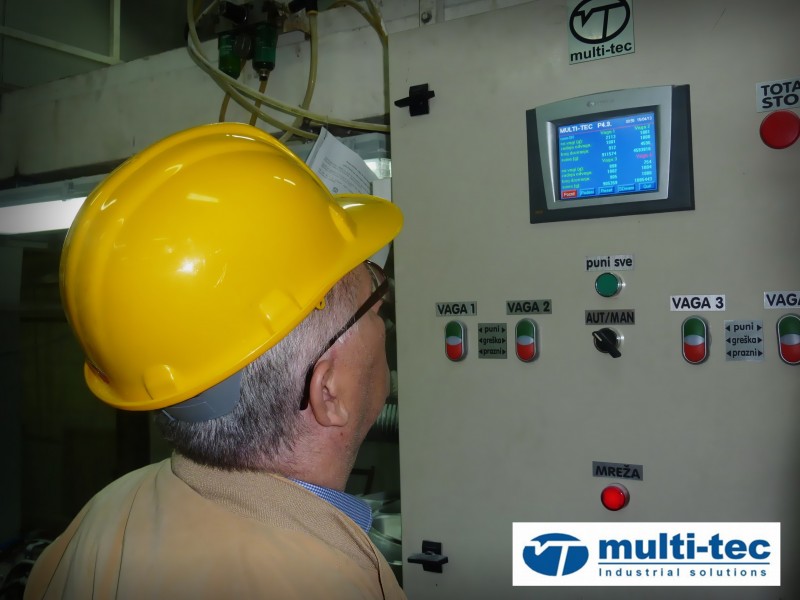

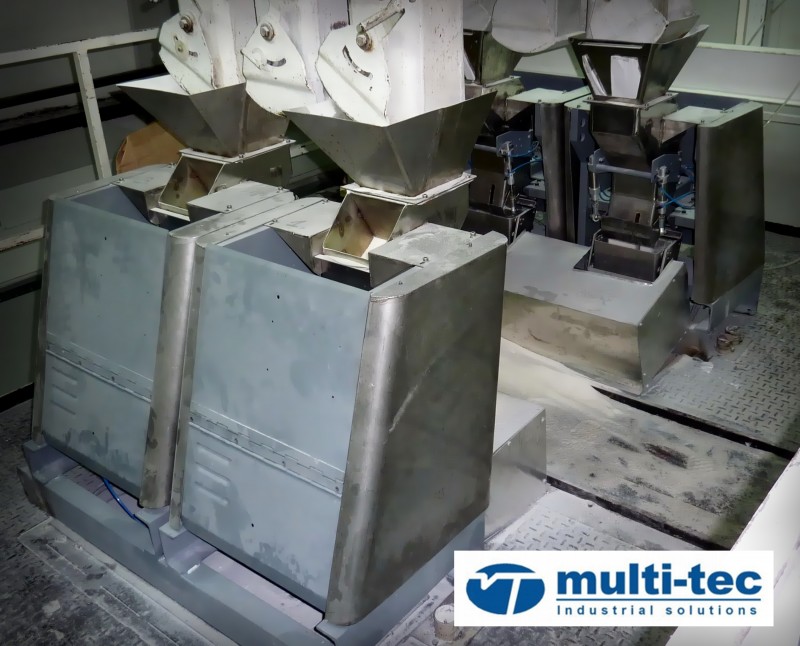

Industrial Sugar Scales are usually in groups of four scales, each with measuring/controllers from HBM AED9201A and PLC that controls the process of dosing. PLC Unitronics, type V570.
Video:

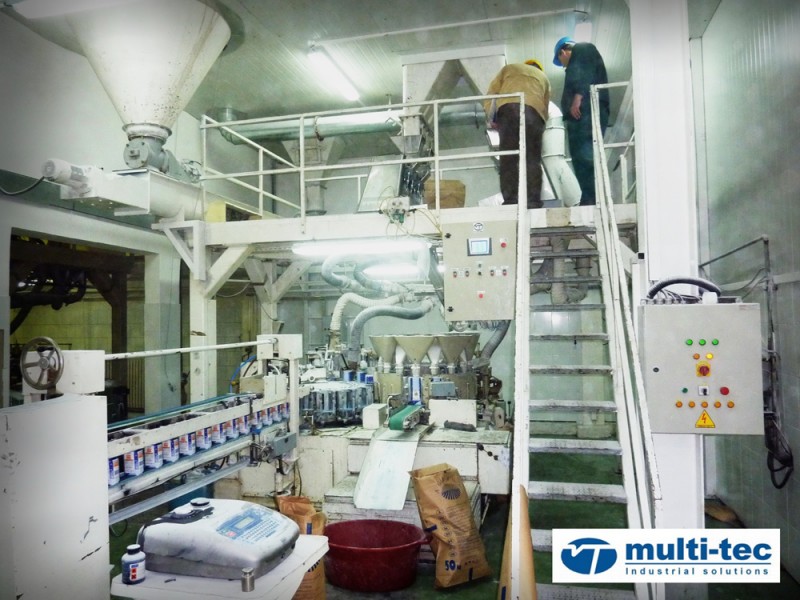

Industrial scales for sugar 1-2kg; Multitec (Installed in a sugar refinery SUNOKO, Kovacica, Serbia)
